Features:

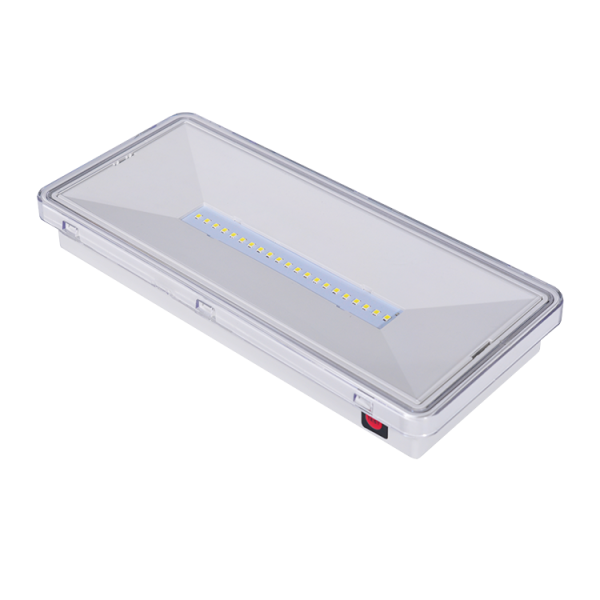

21LED Waterproof emergency exit sign-IP65
*New slim type bulkhead emergency lighting.
*Clear polycarbonate diffuser & ABS housing.
*21pcs SMD3528 LED for enhanced lumen output.
*3 hours maintained operation can be wired as non-maintained
*With converted to Edge-lit exit signs by accessories
*Optional multi directional sticker legend kit
| of operation | Maintained |
| Voltage | 220-240V 50-60Hz |
| Power Consumption | MAX 2.8W |
| Output Voltage | DC 5V ±0.5V |
| Output Power | 3.8W |
| Lumen Output | 160 lm |
| Battery | 3.6V 1500mAh NI-MH |
| Max Charge Current(mA) | MAX 200mA |
| Max Discharge Current (mA) | MAX 500mA |
| Charging Time | 24H |
| Discharge Time | 3H |
| LED | 21pcs SMD 2835 |
| Product Name | 21LED Waterproof emergency exit sign-IP65 | ||
| Model No. | LE515-21 EXIT | ||
| Main Specification | 21LEDs, 3.6V 1500mAh Ni-MH battery, Maintained, with acrylic signs | ||
| Product Size | 352x11x67mm | ||
| MOQ | 1000PCS | ||
| Lead Time | 35 days | ||
| Sample Delivery Time | 3~10 days | ||
| Remarks With single face acrylic sign | |||
| Packing | Color box | ||
| Carton | L(cm) | W(cm) | H(cm) |
| Carton Size | 40 | 29 | 21 |
| Carton CBM | 0.024M3 | ||
| Q’TY/INNER BOX | PCS | ||
| Q’TY/CTN | 12PCS | ||
| Gross Weight | 8KGS | ||
| Net Weight | 7KGS | ||
| Container Loading Q’TY(PCS) |
1*20′ | 1*40′ | 1*40′ HQ |
| 13750 | 28750 | 33500 | |
