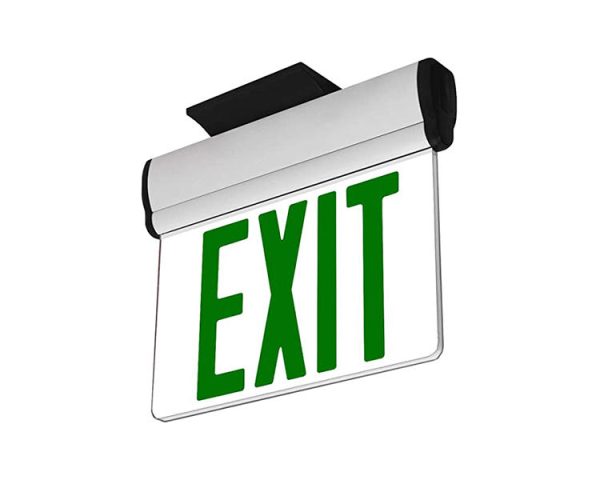

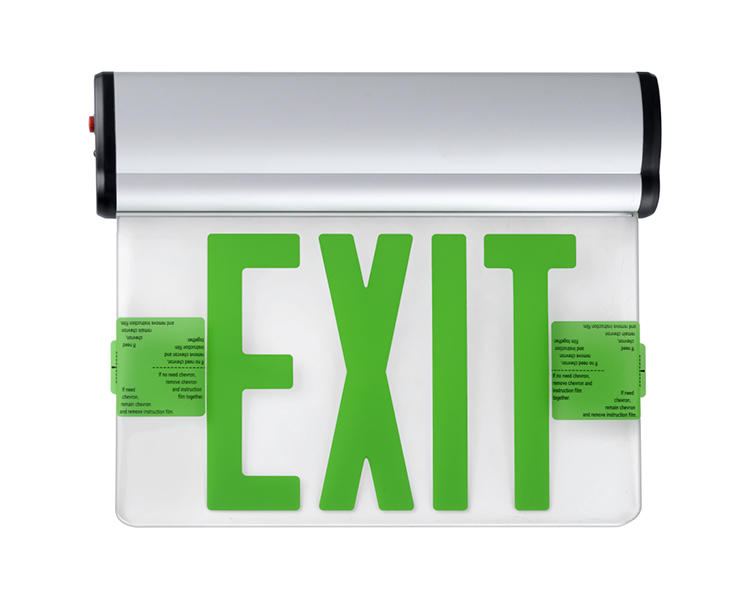

JELBEX1GC-Single Face 6 Inch LED Emergency Exit Sign

Technical Details

Description

The ultimate exit sign in design and versatility. This Green LED Edge Lit Exit Sign will solve almost any mounting configuration problem. This one style allows for ceiling, side, and wall mount installation. The edge lit panel is constructed of high grade acrylic with customizable directional arrows to point towards exit direction. The removable front cover makes installation and maintenance headache-free!
The LED series is UL listed and meets or exceeds the following: UL 924, NEC and NFPA 101 Life Safety Code requirements. Also available with UL Canada listing option.

Technical Details

*CONSTRUCTION – This Edge Lit Exit Sign housing is constructed of die-cast aluminumhousing with an etched, clear acrylic panel. Lettering is 6″ high with 3/4″ stroke. Aluminum housing is standard, black and white housing available.
*ILLUMINATION – This Edge Lit Exit Sign series provides a long life LED illumination. The unit is constructed with a green high output LED board. Energy consumption is rated at less than 3 watts for the AC only model units. Battery backup units energy consumption is rated at less than 1 watts.
*EMERGENCY POWER BATTERY BACKUP- This Edge Lit Exit Sign series is designed with a 4.8 Volt 400mAh maintenance-free Ni-MH battery. The battery is protected by a low voltage cut-off circuit. The operating temperature range for the battery is 32°F (0°C) to 104°F (40°C).
*EASY INSTALLATION IN MINUTES – The Edge Lit Exit Sign is suitable for wall, sloped, high, or standard ceiling mounting. Recessed mounting option allows unit to be ceiling recessed for drop ceiling or new construction application only. Includes field installable directional arrow indicators. All hardware is included.
*5 YEAR WARRANTY – Our LED emergency lights are offered high quality products at affordable prices backed by 5 year warranty and professional after-sales support.

Show details

Customized Solution

Applications

Product comparison

Pricture
Part Number	LE297	LE2912	JELBEX1GC	JELBEX1RC	JELBEX1GM	JELBEX1RM	JELBEX2GM	JELBEX2RM	JELEX1GC	JELEX1RC
Item Weight	1.32 lbs /0.6 kgs	1.76 lbs /0.8 kgs	3.1 lbs /1.4 kgs	3.1 lbs /1.4 kgs	3.1 lbs /1.4 kgs	3.1 lbs /1.4 kgs	3.1 lbs /1.4 kgs	3.1 lbs /1.4 kgs	3.3 lbs /1.5 kgs	3.3 lbs /1.5 kgs
Package Dimensions	15.4 x 9.17 x 1.38 inches	14.76 x 9.17 x 2.1 inches	12.4 x 7.48 x 2.36 inches	12.4 x 7.48 x 2.36 inches	12.4 x 7.48 x 2.36 inches	12.4 x 7.48 x 2.36 inches	12.4 x 7.48 x 2.36 inches	12.4 x 7.48 x 2.36 inches	13.98 x 11.42 x 2.36 inches	13.98 x 11.42 x 2.36 inches
	39.1 x 23.3 x 3.5 cm	37.5 x 23.3 x 5.3 cm	31.5 x 19 x 6 cm	31.5 x 19 x 6 cm	31.5 x 19 x 6 cm	31.5 x 19 x 6 cm	31.5 x 19 x 6 cm	31.5 x 19 x 6 cm	35.5 x 29 x 6 cm	35.5 x 29 x 6 cm
Color	‎White/ Green directional pictograms	‎White/ Green directional pictograms	Green EXIT Letter	Red EXIT Letter	Green EXIT Letter	Red EXIT Letter	Green EXIT Letter	Red EXIT Letter	Green EXIT Letter	Red EXIT Letter
Material	PMMA exit panel & ABS housing	PMMA exit panel & ABS housing	Aluminum housing with acrylic face	Aluminum housing with acrylic face	Aluminum housing with mirror divider acrylic face	Aluminum housing with mirror divider acrylic face	Aluminum housing with mirror divider acrylic double face	Aluminum housing with mirror divider acrylic double face	Aluminum housing with acrylic face	Aluminum housing with acrylic face
Voltage	220-240 Volts	220-240 Volts	120 – 277 Volts	120 – 277 Volts	120 – 277 Volts	120 – 277 Volts	120 – 277 Volts	120 – 277 Volts	120 or 277 Volts	120 or 277 Volts
Battery	3.6V 500mAh Ni-Cad	3.6V 500mAh Ni-Cad	4.8V 400mAh Ni-MH	4.8V 400mAh Ni-MH	4.8V 400mAh Ni-MH	4.8V 400mAh Ni-MH	4.8V 400mAh Ni-MH	4.8V 400mAh Ni-MH	3.6V 600mAh Ni-Cad	3.6V 600mAh Ni-Cad
Wattage	2.5 watts	2 watts	3 watts	3 watts	3 watts	3 watts	3 watts	3 watts	3.5 watts	3.5 watts
Type of Bulb	‎LED	‎LED	‎LED	‎LED	‎LED	‎LED	‎LED	‎LED	‎LED	‎LED
Mounting Type	Surface, ceiling or cord suspended	Surface, ceiling or cord suspended	Wall, sloped, high, or standard ceiling mounting	Wall, sloped, high, or standard ceiling mounting	Wall, sloped, high, or standard ceiling mounting	Wall, sloped, high, or standard ceiling mounting	Wall, sloped, high, or standard ceiling mounting	Wall, sloped, high, or standard ceiling mounting	Wall, sloped, high, or standard ceiling mounting	Wall, sloped, high, or standard ceiling mounting
Certifications	CE RoHs compliance	CE RoHs compliance	UL listed	UL listed	UL listed	UL listed	UL listed	UL listed	UL listed	UL listed
Weather Ratings	IP20	IP20	Listed for damp location	Listed for damp location	Listed for damp location	Listed for damp location	Listed for damp location	Listed for damp location	Listed for damp location	Listed for damp location
Carton Weight	17.64 lbs / 8 kgs	20.94 lbs / 9.5 kgs	20.72 lbs / 9.4 kgs	20.72 lbs / 9.4 kgs	20.72 lbs / 9.4 kgs	20.72 lbs / 9.4 kgs	20.72 lbs / 9.4 kgs	20.72 lbs / 9.4 kgs	21.6 lbs / 9.8 kgs	21.6 lbs / 9.8 kgs
Carton Size	16.14 x 14.57 x 9.84 inches / 10pcs	22.24 x 15.35 x 9.84 inches / 10pcs	15.35 x 13.19 x 8.66 inches / 6pcs	15.35 x 13.19 x 8.66 inches / 6pcs	15.35 x 13.19 x 8.66 inches / 6pcs	15.35 x 13.19 x 8.66 inches / 6pcs	15.35 x 13.19 x 8.66 inches / 6pcs	15.35 x 13.19 x 8.66 inches / 6pcs	15.35 x 14.37 x 12.2 inches / 6pcs	15.35 x 14.37 x 12.2 inches / 6pcs
	41 x 37 x 25 cm / 10pcs	56.5 x 39 x 25 cm / 10pcs	39 x 33.5 x 22 cm / 6pcs	39 x 33.5 x 22 cm / 6pcs	39 x 33.5 x 22 cm / 6pcs	39 x 33.5 x 22 cm / 6pcs	39 x 33.5 x 22 cm / 6pcs	39 x 33.5 x 22 cm / 6pcs	39 x 36.5 x 31 cm / 6pcs	39 x 36.5 x 31 cm / 6pcs
