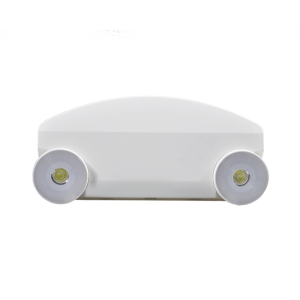

JLEU5-UL Approved Twin Head LED Emergency Light

Description

The emergency lights works on either 120 or 277 VAC. Long lasting, low maintenance NiCad battery. Product is UL Listed and meets NFPA 101, OSHA and UL 924 emergency codes. As a home, commercial and industrial lighting, perfect for hallway, corridor, hospital, apartments, churches, shopping malls, supermarkets, schools, hotel, pub, restaurant, warehouses, office building, etc.

Technical Details

*ILLUMINATION – Emergency lamps use long-lasting, energy efficient ultra bright white LEDs. Heads are made with high-performance chromeplated reflectors and polycarbonate lenses for optimal light distribution.
*MULTI-ANGLE LIGHTING – Each side of the emergency light has bright adjustable floodlights on the sign for maximum visibility. 360° ratation, the flexibility of the light direction allows you to point the lights at almost a 90 degree angle.
*EMERGENCY POWER BATTERY BACKUP- Emergency light built-in 3.6V 1000mAh Nickel cadmium backup battery, upon failure of the normal utility power, an internal solidstate transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes.
*EASY INSTALLATION IN MINUTES – Can be wall or ceiling mounted, universal J-box mounting pattern. Test switch and status indicator let you know the emergency lights has power and the battery is working.
*REMOTE HEAD CAPABLE OPTION – The remote head capability option allows the unit to supply power to up to two additional 3.6V LED remote heads. The remote heads would then operate on the same emergency mode as the standard units.
*5 YEAR WARRANTY – Our LED emergency lights are offered high quality products at affordable prices backed by 5 year warranty and professional after-sales support.

Installation video

Show Details

Installation and Usage Instructions

Applications

Product Comparison

PRICTURE
MODEL NO	JLEU1	JLEU3	JLEU4	JLEU5	JLEU9	JLEU10	JLEU12	JLEU15
Item Weight	2.65 lbs/1.2 kgs	1.54 lbs/0.7 kgs	1.54 lbs/0.7 kgs	1.32 lbs/0.6 kgs	1.65 lbs/0.75 kgs	0.66 lbs/0.3 kgs	1.1 lbs/0.5 kgs	0.88 lbs/0.4 kgs
Inner Box Size	16.22 x 5.63 x 4.49 inches	13.66 x 4.72 x 3.62 inches	12.13 x 5.3 x 3.15 inches	11.22 x 4.65 x 2.95 inches	12.4 x 5.04 x 4.13 inches	8.86 x 4.33 x 1.97 inches	9.69 x 4.92 x 2.48 inches	9.57 x 4.8 x 1.97 inches
	41.2 x 14.3 x 11.4 cm	34.7 x 12 x 9.2 cm	30.8 x 13.5 x 8 cm	28.5 x 11.8 x 7.5 cm	31.5 x 12.8 x 10.5 cm	22.5 x 11 x 5 cm	24.6 x 12.5 x 6.3 cm	24.3 x 12.2 x 5 cm
Color	‎White	‎White	‎White	‎White	‎White	‎White	‎White	‎White
Material	Thermoplastic	Thermoplastic	Thermoplastic	Thermoplastic	Thermoplastic	Thermoplastic	Thermoplastic	Thermoplastic
Voltage	120/277 Volts	120/277 Volts	120/277 Volts	120/277 Volts	120/277 Volts	120/277 Volts	120-277 Volts	120-277 Volts
Battery	3.6V 1000mAh Ni-Cad	3.6V 1000mAh Ni-Cad	3.6V 1000mAh Ni-Cad	3.6V 1000mAh Ni-Cad	3.6V 1000mAh Ni-Cad	3.6V 1000mAh Ni-Cad	3.6V 1000mAh Ni-Cad	3.6V 1000mAh Ni-MH
Wattage	3.5 watts	2.4 watts	3.6 watts	2.4 watts	2.4 watts	2 watts	4.5 watts	2 watts
Type of Bulb	‎LED	‎LED	‎LED	‎LED	‎LED	‎LED	‎LED	‎LED
Mounting Type	‎Wall Mounted	‎Wall Mounted	‎Wall Mounted	‎Wall Mounted	‎Wall Mounted	‎Wall Mounted	‎Wall Mounted	‎Wall Mounted
Certifications	UL listed	UL listed	UL listed	UL listed	UL listed	UL listed	UL listed	UL listed
Weather Ratings	Listed for damp location	Listed for damp location	Listed for damp location	Listed for damp location	Listed for damp location	Listed for damp location	Listed for damp location	Listed for damp location
Carton Weight	17.64 lbs/8 kgs	11.02 lbs/5 kgs	11.02 lbs/5 kgs	8.82 lbs/4 kgs	11.46 lbs/5.2 kgs	8.82 lbs/4 kgs	7.72 lbs/3.5 kgs	12.13 lbs/5.5 kgs
Carton Size	16.7 x 12.4 x 14.37 inches / 6pcs	14.96 x 14.17 x 7.87 inches / 6pcs	12.6 x 11.8 x 10.24 inches / 6pcs	11.8 x 9.84 x 9.84 inches / 6pcs	16 x 12.8 x 9.06 inches / 6pcs	13.98 x 9.65 x 9.06 inches / 12pcs	11.22 x 10.43 x 8.27 inches / 6pcs	14.96 x 10.04 x 8.86 inches / 12pcs
	42.5 x 31.5 x 36.5 cm /6pcs	38 x 36 x 20 cm / 6pcs	32 x 30 x 26 cm / 6pcs	30 x 25 x 25 cm / 6pcs	40.7 x 32.5 x 23 cm / 6pcs	35.5 x 24.5 x 23 cm / 12pcs	28.5 x 26.5 x 21 cm / 6pcs	38 x 25.5 x 22.5 cm / 12pcs
Charging Time	24 Hours	24 Hours	24 Hours	24 Hours	24 Hours	24 Hours	24 Hours	24 Hours
Emergency Run Time	≥90  Mins	≥90  Mins	≥90  Mins	≥90  Mins	≥90  Mins	≥90  Mins	≥90  Mins	≥90  Mins
