Features:

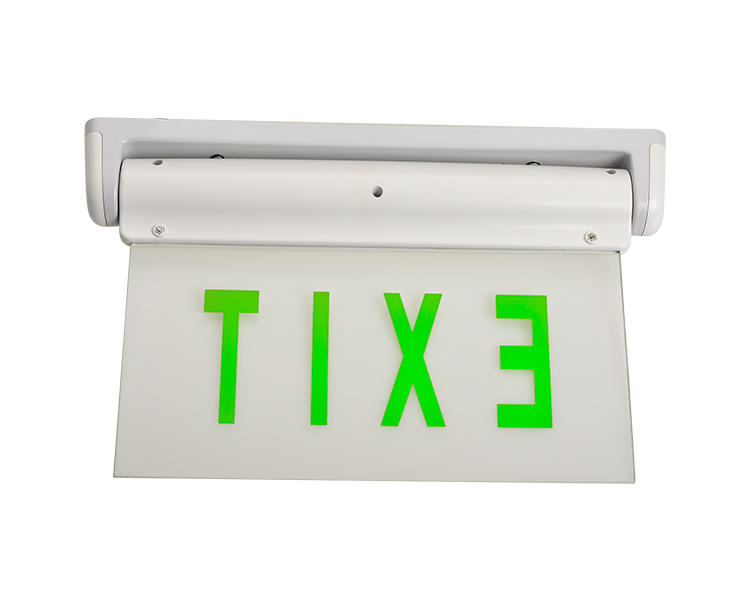

LED EMERGENCY EXIT SIGN
Light source: 5 OR 10xGreen LED lights-green color
(LED lifetime: over 50000hours)
Battery Type: 3.6V 500mAh Ni-Cad batteries included
Rated Power:0.33W/0.66W
Material: ABS, Acrylic panel
Mode of Operation: Maintained
Rated supply voltage: 110V~240V/50~60HZ
Operation Temperature: 0℃~-50℃
Full charge time:Approx.20hours
Duration: Approx.6 hours
Multi-angle wall mounting
IP Class: IP20
Insulation: I
Option:
-LED light color and number
-Non-maintained also available
It is a range of emergency exit sign luminaires designed and equipped with technical solutions that make it suitable for a wide range of applications. The choice of exit sign labels makes its range appropriated for emergency lighting requirements in multiple places such as offices, restaurants, hotels, hospitals and general commercial applications.
A complete range of accessories such as the recessed base for false ceiling installations, lateral and back base as well as suspension options allow for a variety of mounting positions. It is equipped with LED light source to provide an excellent uniform illumination of the legend.
| Part Number | LE2912 |
| Item Weight | 1.76 lbs / 0.8 kgs |
| Package Dimensions | 14.76 x 9.17 x 2.1 inches |
| 37.5 x 23.3 x 5.3 cm | |
| Color | White / Green directional pictograms |
| Material | PMMA exit panel & ABS housing |
| Voltage | 220-240 Volts |
| Battery | 3.6V 500mAh Ni-Cad |
| Wattage | 2 watts |
| Type of Bulb | LED |
| Mounting Type | Surface, ceiling or cord suspended |
| Certifications | CE RoHs compliance |
| Weather Ratings | IP20 |
| Carton Weight | 20.94 lbs / 9.5 kgs |
| Carton Size | 22.24 x 15.35 x 9.84 inches / 10pcs |
| 56.5 x 39 x 25 cm / 10pcs |
*CONSTRUCTION – The LED Exit Sign is constructed of die-cast ABS housing with clear acrylic panel. White housing is standard.
*ILLUMINATION – The LED Exit Sign series illumination is achieved by use long-lasting, efficient ultra bright green LEDs. Color-matched diffuser eliminates hots spots and striations, providing optimal light output.
*EMERGENCY POWER BATTERY BACKUP- The LED Exit Sign is designed with a maintenance-free 3.6V 500mAh Ni-Cad battery that provides a minimum emergency duration of 6 hours. Recharge time of the battery is 24 hours.
*EASY INSTALLATION IN MINUTES – The LED Exit Sign is suitable for Surface, flag, ceiling or cord suspended mounting. Choose a variety of directional pictograms – right, left, up, down, etc..
*5 YEAR WARRANTY – Our LED emergency lights are offered high quality products at affordable prices backed by 5 year warranty and professional after-sales support.
Trusted Manufacturer of Emergency Lighting Solutions，Specializing in Emergency Lights, Exit Signs, LED Emergency Drivers, and Emergency Ballasts Established in 1967.
